Keybind Framework

Mods that now support Keybind Framework! (Click on names to go to the mods)

Adds a Mod keybinds tab to the Settings window that lists hotkeys from every mod built on this framework, each in its own sub-tab, and more

• For Users this adds a way to rebind keybinds and let you know if any conflict. (See image under as example)

• For modders see guide under images how to implement your keybinds to the framework. Or check included Guide inside the mod folder.



# Adding your mod to the Keybind Framework

The Keybind Framework is a standalone mod from Mori Suit mods. (`keybind-framework`) that gives
every mod's hotkeys one shared home: a **"Modded Keybinds"** tab in the game's Settings window,
right after Controls. Register your mod's keybinds with it and you get, for free:

- Your own tab in Settings (named after your mod), or a shared tab with your other mods if you want one
- Optionally, split a mod with lots of keybinds into its own sub-tabs by group, instead of one long scrolling list (see *split your own mod's keybinds into sub-tabs* below)
- A rebinding UI (click a field, press a new key, Apply)
- Primary + Secondary key slots — both fire, so the player can have two shortcuts for one action
- Automatic conflict detection against vanilla shortcuts **and every other mod** registered with the framework — the player is told exactly which mod owns the key they clashed with
- Optionally, hand your keybind straight to the game's own shortcut dispatcher — no input polling code in your mod at all (see *Skip the polling* below)

You talk to the framework purely through **reflection** — there is no DLL to reference and no
compile-time dependency. This means your mod keeps working fine even if a player doesn't have
the Keybind Framework installed; it just falls back to your own hard-coded default keys.

---

## What changed in framework 2.0.2 — re-check this guide

If you integrated before this version, three things need a small change on your side. Everything
else keeps working exactly as before.

1. **Both key slots now fire.** The Secondary slot used to be only a fallback, activating just
   when the Primary clashed with something. Now Primary and Secondary both fire, so a player can
   have two working shortcuts for one action. If you poll for input (Step 4) you must also read
   the second slot, using the new `GetComboSecondary` — otherwise your players set a second
   keybind and nothing happens, which is the single most-reported bug this change fixes. If you
   use the dispatcher instead (*Skip the polling* below), you get both slots with **no code
   change at all**.
2. **Left and right Ctrl / Shift / Alt are now separate keys.** `LeftControl + W` and
   `RightControl + W` are two different binds that do not clash. Your input check has to compare
   the exact side — the common "either Ctrl counts" style now fires on both sides and quietly
   throws away the player's choice.
3. **Right Alt and AltGr are the same key.** Windows has no separate AltGr key — it is the right
   Alt, and Unity reports `KeyCode.AltGr` for that key on every layout, including the many
   layouts (US, Canadian, UK) where the key is plain Alt and has no AltGr behaviour at all. The
   framework therefore stores it as `RightAlt` and accepts an older `AltGr` token as the same
   key. Your input check must treat the two names as one key, and ignore the LeftControl that
   Windows sends alongside AltGr on layouts that do have it — otherwise a plain `Ctrl + W` bind
   of yours also fires when the player presses AltGr + W. **Never test `KeyCode.AltGr` on its
   own:** Unity sets it from the generic Alt, so it is true for the LEFT Alt as well. Test
   `KeyCode.RightAlt` and use AltGr only as a fallback when no left Alt is down — see
   `RightAltDown()` in the sample below.

The Step 4 snippet and the Full example at the end of this guide are already updated for all
three. If you integrated from an older copy, take them again from here.

---

## Step 1 — Declare it as an optional dependency

In your mod's `manifest.json`, add:

```json
"optional_mod_dependencies": ["keybind-framework"]

Use optional_mod_dependencies, never mod_dependencies. A mandatory dependency will grey out your mod on a player's existing save if they don't have the framework installed. Optional means your mod loads and works fine on its own either way.

Step 2 — List your keybinds

Describe each keybind as a row of 7 plain strings:

{ id, label the player sees, type, default combo, gesture hint, group heading, tooltip }

Example — three keybinds, two of them sharing a group heading:

private static readonly string[][] Descriptors =
{
    new[] { "MyMod_OpenWindow",   "Open My Cool Mod window", "Discrete", "LeftControl + M", "",           "Windows", "Opens the main window." },
    new[] { "MyMod_QuickAction",  "Do the quick action",     "Discrete", "G",                "",           "Actions", "Runs the quick action on the selected building." },
    new[] { "MyMod_PaintModifier","Paint mode",               "Modifier", "LeftAlt",          "Left-click", "Actions", "Hold and left-click tiles to paint them." },
};

This renders as your own tab titled after your mod, with a "Windows" heading over the first row and an "Actions" heading over the other two.

Step 3 — Register when your mod loads

Call this once from IMod.Initialize (not RegisterPrototypes — by Initialize every mod assembly, including the framework's, is guaranteed to be loaded):

private const string MOD_ID = "my-cool-mod";     // your manifest.json "id"
private const string DISPLAY = "My Cool Mod";     // shown as your tab's title
private const string SEP = "~|~";

private static MethodInfo s_getCombo;
private static MethodInfo s_getComboSecondary;
private static bool s_initialized;

public static void Register()
{
    if (s_initialized) return;
    s_initialized = true;
    try
    {
        Type apiType = null;
        foreach (var asm in AppDomain.CurrentDomain.GetAssemblies())
        {
            apiType = asm.GetType("KeybindFramework.KeybindFrameworkApi");
            if (apiType != null) break;
        }
        if (apiType == null) return; // framework not installed - your mod just keeps its own defaults

        s_getCombo = apiType.GetMethod("GetCombo", new[] { typeof(string), typeof(string) });
        s_getComboSecondary = apiType.GetMethod("GetComboSecondary", new[] { typeof(string), typeof(string) });
        var reg = apiType.GetMethod("RegisterRaw", new[] { typeof(string), typeof(string), typeof(string[]) });
        if (reg == null) return;

        var rows = new List<string>();
        foreach (var d in Descriptors)
            rows.Add(string.Join(SEP, new[] { d[0], d[1], d[2], d[3], d[4], d[5], "", d[6] }));
        reg.Invoke(null, new object[] { MOD_ID, DISPLAY, rows.ToArray() });
    }
    catch { }
}

A couple of things worth knowing:

• RegisterRaw must be looked up with its exact parameter types (GetMethod("RegisterRaw", new[] { typeof(string), typeof(string), typeof(string[]) })), not just by name — the framework has more than one method called RegisterRaw, and a name-only lookup throws.
• The empty "" in the middle of the row is a default for the Secondary key. You don't have to set one — leave it "" and the player can fill it in themselves — but you may ship a second default combo there if your action deserves two shortcuts out of the box. See Two slots, both live below.
• GetComboSecondary comes back null on framework versions older than 2.0.2. That's fine — the helper in Step 4 falls back to "None", and your mod behaves exactly as it did before.
• Everything is wrapped in try/catch so a missing or older framework DLL can never crash your mod.

Step 4 — Read the player's chosen key

Cache GetCombo once in Register() (already done above), then check it whenever you poll for input:

private static string ComboFor(string id, string fallbackDefault)
{
    try
    {
        if (s_getCombo != null)
        {
            var c = s_getCombo.Invoke(null, new object[] { MOD_ID, id }) as string;
            if (!string.IsNullOrEmpty(c)) return c;
        }
    }
    catch { }
    return fallbackDefault; // framework absent or key not found - use your own default
}

GetCombo always returns the combo that's actually in effect right now, including any rebind the player made. You never need to check overrides yourself.

But GetCombo is only the first slot. Every "Discrete" keybind also has a Secondary slot, and it fires independently — so read it too, with the same shape:

private static string SecondaryComboFor(string id)
{
    try
    {
        if (s_getComboSecondary != null)
        {
            var c = s_getComboSecondary.Invoke(null, new object[] { MOD_ID, id }) as string;
            if (!string.IsNullOrEmpty(c)) return c;
        }
    }
    catch { }
    return "None"; // framework absent or older than 2.0.2 - no second slot, nothing extra fires
}

Then your input check tries the first slot and, failing that, the second — see IsPressed in the Full example. Skip this and your players will set a second keybind and find it does nothing.

GetComboSecondary returns "None" when there is nothing extra to fire — including the case where the framework has already switched the player over to the Secondary because their Primary clashed. So you never double-fire, and you never have to reason about which slot is "active".

Play nice while the player is typing a new key

While a player is capturing a new binding in Settings, raw key presses are still visible to your mod's own input checks — so without a guard, typing "Ctrl" to set a new binding could also fire your own Ctrl-based hotkey elsewhere in the game. Bail out at the top of your input check with:

if (AppDomain.CurrentDomain.GetData("MoriPP_KeybindCapturingFrame") is int cf && Time.frameCount - cf <= 1)
    return false;

This flag is set by the framework only while a rebind capture is actually in progress, and it expires automatically after one frame, so it's safe to check unconditionally every time.

You do not need to do anything about text boxes. The framework already stops all keybinds from firing while the player is typing in a search box or any other input field — the game's own building search included — and that happens whether or not your mod checks the flag above.

Optional: skip the polling — let the game fire your keybind

If a keybind is a simple "press it once, something happens" action, you don't have to write any input polling at all. The game has its own dispatcher for this — IUnityInputMgr.RegisterGlobalShortcut— and the framework can hand it the player's current combo as a ready-made KeyBindings.

This path is press-only. It cannot see a key being held or released — so any hold-style keybind, and every "Modifier" row, must keep using polling instead (Step 4 plus IsHeld in the full example below). Use this section only for plain press-and-fire actions.

private static MethodInfo s_getKeyBindings;

// in Register(), next to s_getCombo:
s_getKeyBindings = apiType.GetMethod("GetKeyBindings", new[] { typeof(string), typeof(string) });

private static KeyBindings BindingsFor(string id, KeyBindings fallback)
{
    try
    {
        if (s_getKeyBindings != null)
            return (KeyBindings)s_getKeyBindings.Invoke(null, new object[] { MOD_ID, id });
    }
    catch { }
    return fallback; // framework absent or older - your own default fires instead
}

Then wire it up once from IMod.Initialize:

public void Initialize(DependencyResolver resolver, bool gameWasLoaded)
{
    MyKeybinds.Register();
    var inputMgr = resolver.Resolve<IUnityInputMgr>();
    inputMgr.RegisterGlobalShortcut(
        m => MyKeybinds.BindingsFor("MyMod_OpenWindow",
            KeyBindings.FromPrimaryKeys(KbCategory.Camera, ShortcutMode.Game, KeyCode.LeftControl, KeyCode.M)),
        (Func<bool>)(() => { OpenWindow(); return true; }));
}

How it behaves:

• The function you pass in is re-read every time the game checks input, so a rebind the player makes in Settings applies instantly — no re-registering, no restart needed.
• Both key slots fire on this path for free. The framework fills in the game's own Primary and Secondary fields, so a player who sets two shortcuts gets both, with no extra code in your mod. This is the main reason to prefer this path over polling where your keybind allows it.
• The game won't fire it while the player is typing in a text field, and the framework keeps it quiet during rebind capture automatically — the MoriPP_KeybindCapturingFrame check from the previous section is not needed on this path.
• The fallback is what fires when the framework isn't installed — build it with KeyBindings.FromKey(...) / FromPrimaryKeys(...) so it matches your row's default combo. Use any category except KbCategory.General (General keys sit outside the game's longer-combo-wins handling).
• If GetKeyBindings comes back null, the player is running an older framework version — fall back to the polling from Step 4.
• If the key should open/close a window of yours, pass your WindowController itself as the second argument instead of a callback — that's the same overload the game uses for its own windows.

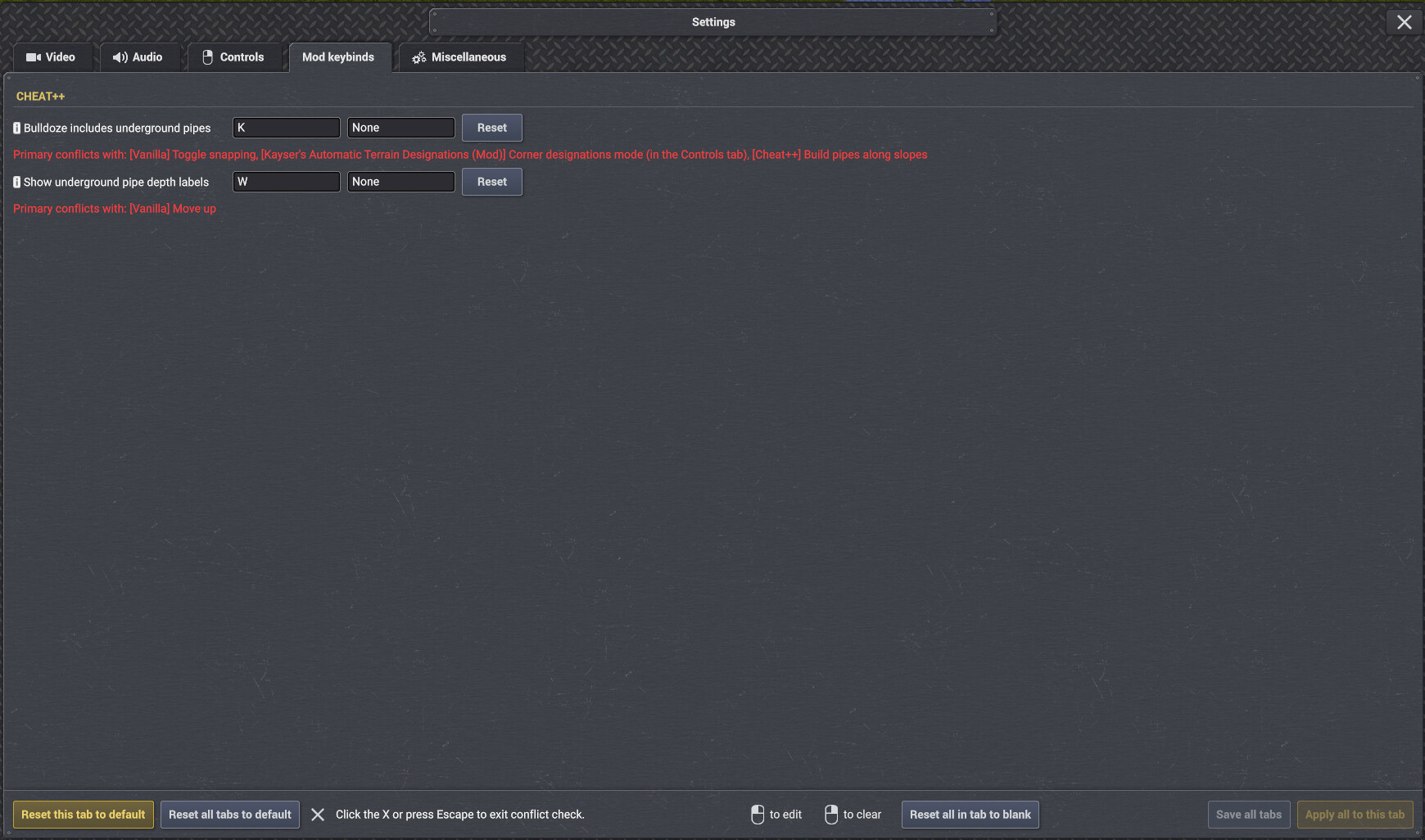

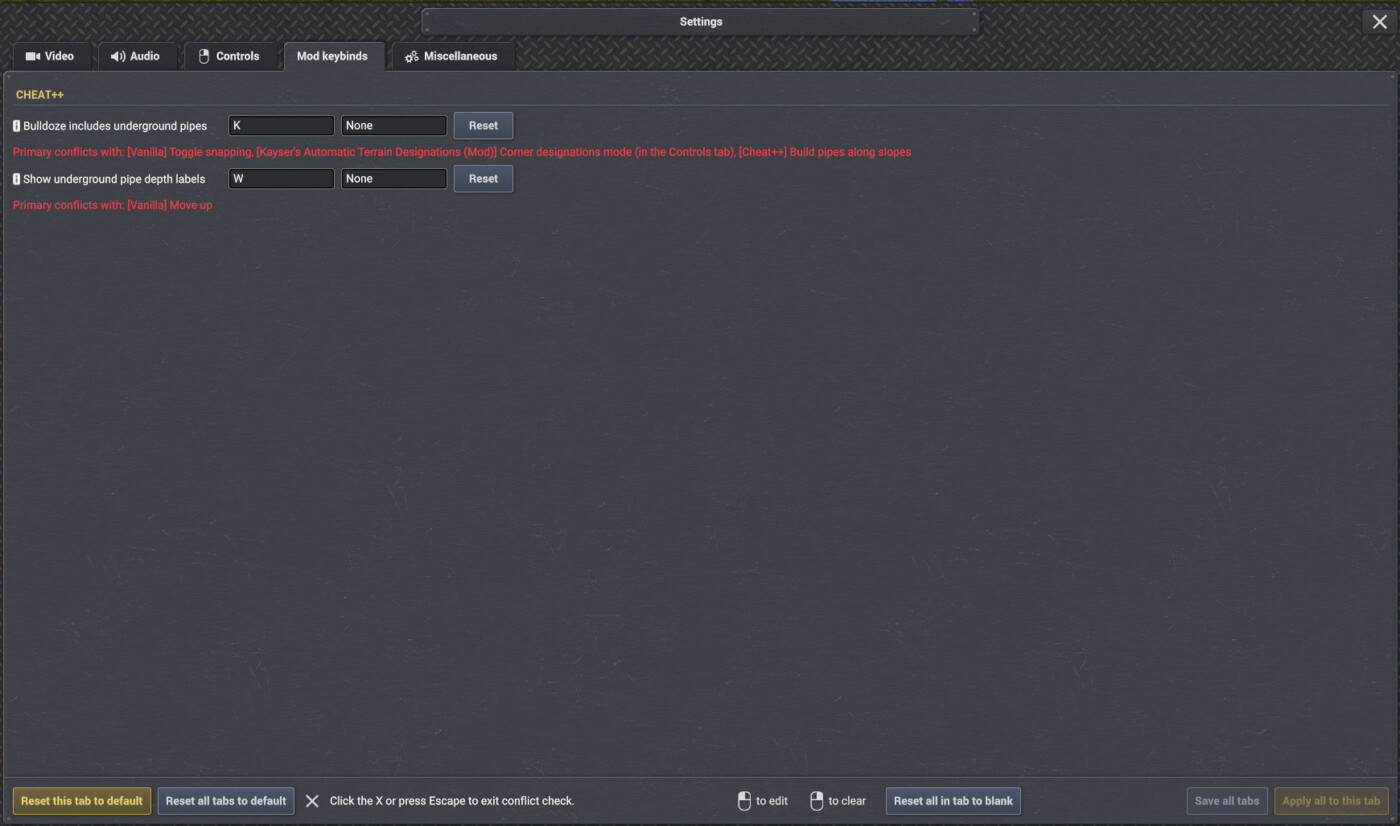

Conflicts are automatic — and they name the other mod

You don't write any conflict-detection code yourself. The moment you register, every combo you use is checked against vanilla shortcuts and every other mod's registered keybinds. If two mods end up on the same key, the player sees a note right under the keybind field, naming the exact other mod and its keybind label, for example:

Conflicts with: [Tweaks++] Toggle the Tweaks++ window

— never just a bare "conflict". This works the same way whether the clash is with a vanilla shortcut ([Vanilla] ...) or with any other mod built on the framework, including yours.

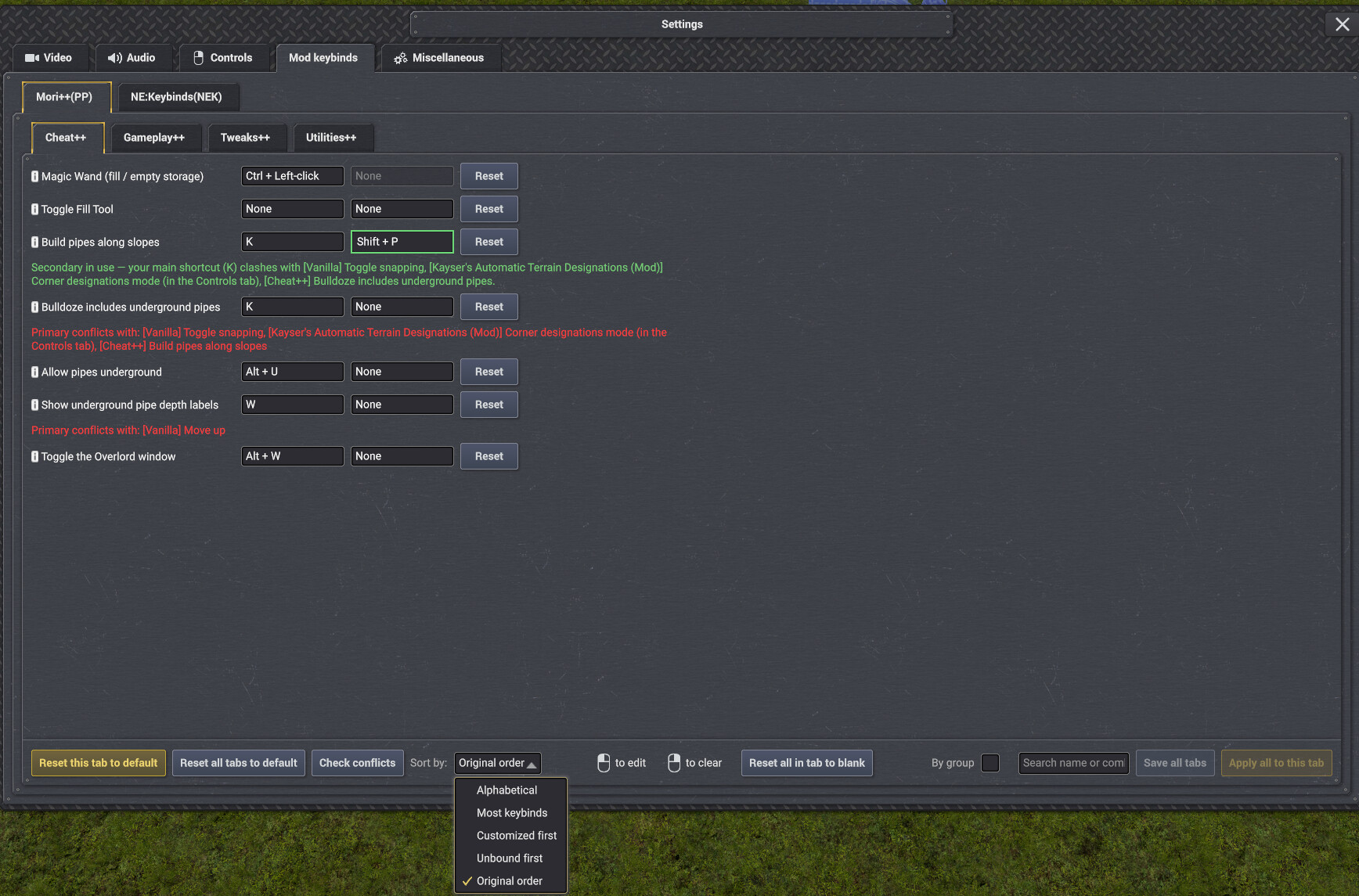

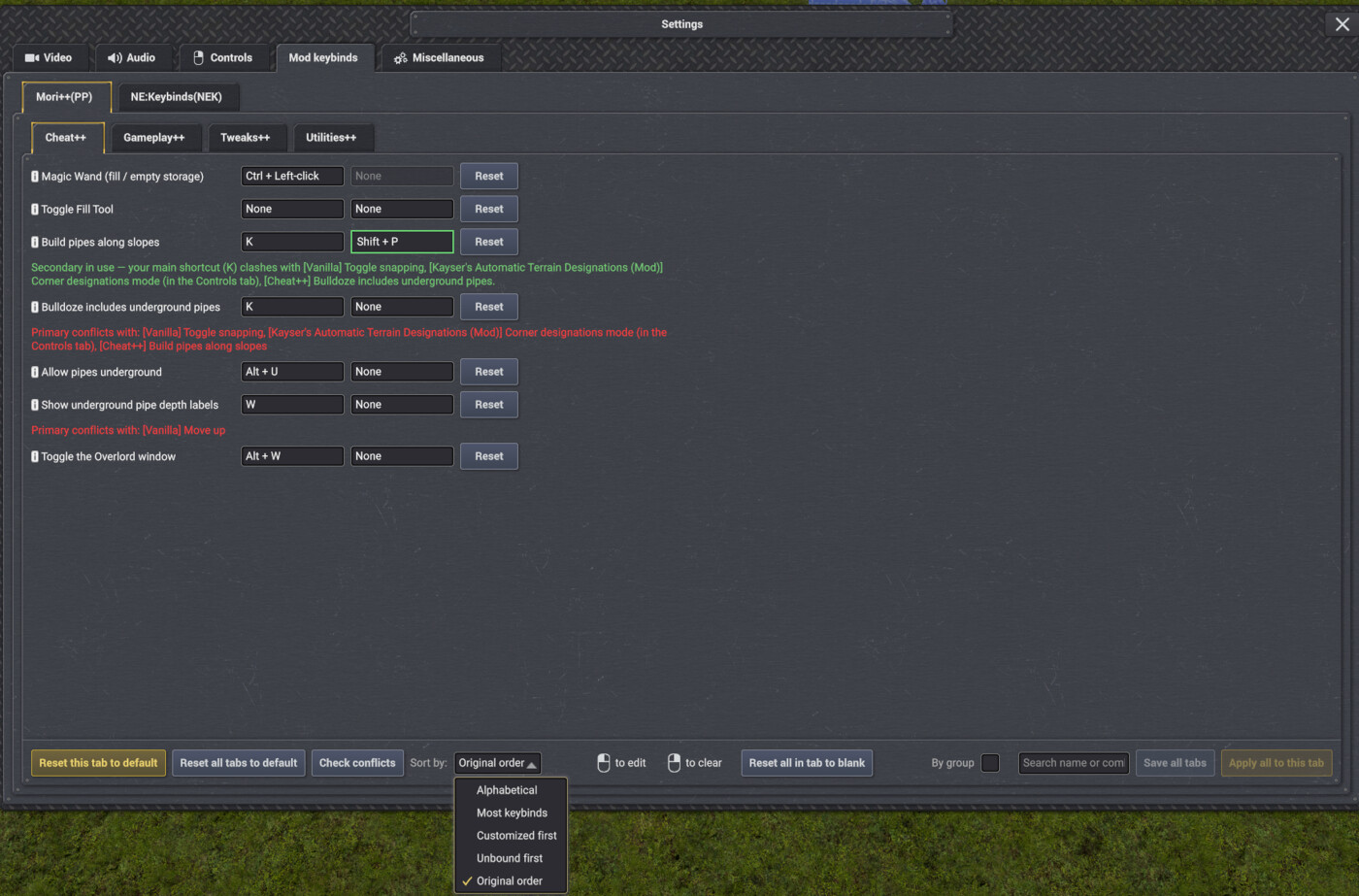

Two slots, both live

Every "Discrete" keybind gets a Secondary slot in the UI for free, next to the Primary. The two are independent: whatever the player puts in each one fires, so they can keep Ctrl + M and RCtrl + M — or a completely different combo — on the same action at once.

There is one exception, and it works in your favour. If the player's Primary clashes with a vanilla shortcut or another mod, and their Secondary is clash-free, the framework quietly moves them over to the Secondary and says so in the UI. In that case only the Secondary fires, so you never trip the clash.

What this means for your code:

• Dispatcher path (Skip the polling): nothing to do, both slots already fire.
• Polling path: read GetCombo and GetComboSecondary and fire if either matches, as Step 4 and the Full example show. GetComboSecondary handles the exception above for you by returning "None" whenever the second slot shouldn't fire separately.

Optional: share one tab across several of your mods

By default your mod gets its own tab. If you ship more than one mod and want them to share a single tab — exactly how the four Mori++ mods all share one "Mori++" tab — pass a bundle name as a 4th argument instead of the 3-arg call above:

var reg = apiType.GetMethod("RegisterRaw", new[] { typeof(string), typeof(string), typeof(string[]), typeof(string) });
reg.Invoke(null, new object[] { MOD_ID, DISPLAY, rows.ToArray(), "My Studio's Mods" });

Every mod that registers with the same bundle name gets its own sub-tab inside that one shared tab, instead of a separate top-level tab each — exactly how Cheat++, Gameplay++, Tweaks++, and Utilities++ each show up as their own sub-tab inside "Mori++" rather than one long scrolling list.

Optional: split your own mod's keybinds into sub-tabs

If your mod has a lot of keybinds — dozens or even hundreds — one long scrolling list gets unwieldy fast. Pass groupsAsTabs: true and every distinct group heading you already use (Step 2) becomes its own sub-tab instead of just a heading, so players click between smaller focused tabs instead of scrolling past everything. Bindings left with no group land in a catch-all "General" tab.

Use the 5-arg RegisterRaw overload instead of the 3-arg one from Step 3 (again, look it up by its exact parameter types — the framework has several RegisterRaw overloads):

var reg = apiType.GetMethod("RegisterRaw", new[] { typeof(string), typeof(string), typeof(string[]), typeof(string), typeof(bool) });
reg.Invoke(null, new object[] { MOD_ID, DISPLAY, rows.ToArray(), null, true });

Pass null for the bundle argument (4th position) if you don't also want to share a tab with other mods — or your bundle name if you want both at once: a labelled sub-tab per bundle member, with that member's own keybinds further split into sub-tabs by group.

Each group sub-tab is fully self-contained — its Reset all / Apply all only ever touches that one group's keybinds, never the rest of your mod.

Full example

This uses the full 5-arg RegisterRaw signature so you can see the bundle and groupsAsTabsswitches from the two Optional sections above in place — both are set to "off" here (null / false), which is the plain single-tab behavior. Flip either one to opt in.

using System;
using System.Collections.Generic;
using System.Reflection;
using UnityEngine;

namespace MyCoolMod
{
    internal static class MyKeybinds
    {
        private const string MOD_ID = "my-cool-mod";
        private const string DISPLAY = "My Cool Mod";
        private const string SEP = "~|~";

        // id, label, type, default combo, gesture hint, group, tooltip
        private static readonly string[][] Descriptors =
        {
            new[] { "MyMod_OpenWindow",    "Open My Cool Mod window", "Discrete", "LeftControl + M", "",           "Windows", "Opens the main window." },
            new[] { "MyMod_QuickAction",   "Do the quick action",     "Discrete", "G",                "",           "Actions", "Runs the quick action on the selected building." },
            new[] { "MyMod_PaintModifier", "Paint mode",              "Modifier", "LeftAlt",          "Left-click", "Actions", "Hold and left-click tiles to paint them." },
        };

        private static MethodInfo s_getCombo;
        private static MethodInfo s_getComboSecondary;
        private static bool s_initialized;

        public static void Register()
        {
            if (s_initialized) return;
            s_initialized = true;
            try
            {
                Type apiType = null;
                foreach (var asm in AppDomain.CurrentDomain.GetAssemblies())
                {
                    apiType = asm.GetType("KeybindFramework.KeybindFrameworkApi");
                    if (apiType != null) break;
                }
                if (apiType == null) return;

                s_getCombo = apiType.GetMethod("GetCombo", new[] { typeof(string), typeof(string) });
                s_getComboSecondary = apiType.GetMethod("GetComboSecondary", new[] { typeof(string), typeof(string) });

                // 5-arg overload: (modId, displayName, bindings, bundle, groupsAsTabs)
                //   bundle:        a shared name (e.g. "My Studio's Mods") to share one tab with your
                //                  other mods, each as its own sub-tab - or null for just your own tab.
                //   groupsAsTabs:  true turns each distinct group heading in Descriptors above into its
                //                  own sub-tab instead of just a heading - handy once you have a lot of
                //                  keybinds. false (or the 3-arg overload) keeps today's single flat tab.
                var reg = apiType.GetMethod("RegisterRaw", new[] { typeof(string), typeof(string), typeof(string[]), typeof(string), typeof(bool) });
                if (reg == null) return;

                var rows = new List<string>();
                foreach (var d in Descriptors)
                    rows.Add(string.Join(SEP, new[] { d[0], d[1], d[2], d[3], d[4], d[5], "", d[6] }));
                reg.Invoke(null, new object[] { MOD_ID, DISPLAY, rows.ToArray(), null, false });
            }
            catch { }
        }

        private static string ComboFor(string id, string fallbackDefault)
        {
            try
            {
                if (s_getCombo != null)
                {
                    var c = s_getCombo.Invoke(null, new object[] { MOD_ID, id }) as string;
                    if (!string.IsNullOrEmpty(c)) return c;
                }
            }
            catch { }
            return fallbackDefault;
        }

        // The player's second shortcut for this action, or "None" if there isn't one to fire.
        private static string SecondaryComboFor(string id)
        {
            try
            {
                if (s_getComboSecondary != null)
                {
                    var c = s_getComboSecondary.Invoke(null, new object[] { MOD_ID, id }) as string;
                    if (!string.IsNullOrEmpty(c)) return c;
                }
            }
            catch { }
            return "None";
        }

        private static bool IsModifierKey(KeyCode k)
        {
            switch (k)
            {
                case KeyCode.LeftControl: case KeyCode.RightControl:
                case KeyCode.LeftShift:   case KeyCode.RightShift:
                case KeyCode.LeftAlt:     case KeyCode.RightAlt:
                case KeyCode.AltGr:
                    return true;
                default:
                    return false;
            }
        }

        // Windows has no AltGr key: it is the right Alt. Do not trust KeyCode.AltGr on its own -
        // Unity sets it from the generic Alt, so it is also true for the LEFT Alt. Use RightAlt as
        // the real signal and keep AltGr only as a fallback when no left Alt is down.
        private static bool AltGrDown()
        {
            try { return Input.GetKey(KeyCode.AltGr); }
            catch { return false; }
        }

        private static bool RightAltDown()
        {
            if (Input.GetKey(KeyCode.RightAlt)) return true;
            return AltGrDown() && !Input.GetKey(KeyCode.LeftAlt);
        }

        // On layouts with AltGr, Windows sends a LeftControl along with the right Alt, and a real
        // Ctrl press looks exactly the same. So while the right Alt is down, treat LeftControl as
        // "don't care" - matching either way. Do NOT force it off: that throws away the Ctrl of a
        // player who really did press Ctrl + AltGr + key.
        private static bool LeftCtrlMatches(bool required)
        {
            bool down = Input.GetKey(KeyCode.LeftControl);
            if (down && RightAltDown()) return true;
            return required == down;
        }

        // Left and right modifiers are separate keys: LeftControl + W and RightControl + W are
        // two different binds, so compare each side on its own rather than "either Ctrl".
        private static bool ModifiersHeldExactly(List<KeyCode> mods)
        {
            bool wantLCtrl = false, wantRCtrl = false;
            bool wantLShift = false, wantRShift = false, wantLAlt = false, wantRAlt = false;
            foreach (var m in mods)
            {
                switch (m)
                {
                    case KeyCode.AltGr: wantRAlt = true; break;
                    case KeyCode.LeftControl: wantLCtrl = true; break;
                    case KeyCode.RightControl: wantRCtrl = true; break;
                    case KeyCode.LeftShift: wantLShift = true; break;
                    case KeyCode.RightShift: wantRShift = true; break;
                    case KeyCode.LeftAlt: wantLAlt = true; break;
                    case KeyCode.RightAlt: wantRAlt = true; break;
                }
            }
            return LeftCtrlMatches(wantLCtrl)
                && wantRCtrl == Input.GetKey(KeyCode.RightControl)
                && wantLShift == Input.GetKey(KeyCode.LeftShift)
                && wantRShift == Input.GetKey(KeyCode.RightShift)
                && wantLAlt == Input.GetKey(KeyCode.LeftAlt)
                && wantRAlt == RightAltDown();
        }

        private static bool ComboPressed(string combo)
        {
            if (string.IsNullOrWhiteSpace(combo) || combo.Trim() == "None") return false;
            KeyCode mainKey = KeyCode.None;
            var mods = new List<KeyCode>();
            foreach (var token in combo.Split('+'))
            {
                var t = token.Trim();
                if (t.Length == 0 || t == "None") continue;
                if (!Enum.TryParse<KeyCode>(t, out var key)) continue;
                if (IsModifierKey(key)) mods.Add(key); else mainKey = key;
            }
            if (mainKey == KeyCode.None) return false;
            if (!ModifiersHeldExactly(mods)) return false;
            return Input.GetKeyDown(mainKey);
        }

        public static bool IsPressed(string id, string defaultCombo)
        {
            if (AppDomain.CurrentDomain.GetData("MoriPP_KeybindCapturingFrame") is int cf && Time.frameCount - cf <= 1)
                return false;

            if (!s_initialized) Register();

            // Both slots fire - check the player's first shortcut, then their second.
            if (ComboPressed(ComboFor(id, defaultCombo))) return true;
            return ComboPressed(SecondaryComboFor(id));
        }

        private static bool HeldKey(KeyCode k)
        {
            if (k == KeyCode.AltGr || k == KeyCode.RightAlt) return RightAltDown();
            return Input.GetKey(k);
        }

        private static bool ComboHeld(string combo)
        {
            if (string.IsNullOrWhiteSpace(combo)) return true;
            combo = combo.Trim();
            if (combo == "None") return true;
            foreach (var token in combo.Split('+'))
            {
                var t = token.Trim();
                if (t.Length == 0) continue;
                if (!Enum.TryParse&lt;KeyCode>(t, out var key)) continue;
                if (!HeldKey(key)) return false;
            }
            return true;
        }

        // For "Modifier" rows and anything hold-based - true while every key of the combo is held.
        // A combo cleared to "None" returns true: the gesture then needs no held key at all.
        public static bool IsHeld(string id, string defaultCombo)
        {
            if (AppDomain.CurrentDomain.GetData("MoriPP_KeybindCapturingFrame") is int cf && Time.frameCount - cf <= 1)
                return false;

            if (!s_initialized) Register();

            if (ComboHeld(ComboFor(id, defaultCombo))) return true;
            // Only try the second slot if there is one - "None" means "no key needed", which
            // would otherwise make this always return true.
            string secondary = SecondaryComboFor(id);
            return secondary.Trim() != "None" && ComboHeld(secondary);
        }
    }
}

Call MyKeybinds.Register() once from IMod.Initialize, then anywhere you check for input:

if (MyKeybinds.IsPressed("MyMod_OpenWindow", "LeftControl + M"))
    OpenWindow();

And for a "Modifier" row (or any hold-based key), combine IsHeld with your own gesture check:

if (MyKeybinds.IsHeld("MyMod_PaintModifier", "LeftAlt") && Input.GetMouseButtonDown(0))
    PaintTile();

The id you pass to IsPressed / IsHeld must match the id from that keybind's row in Descriptors exactly — that's how the framework knows which binding you're asking about.
